As electrical utility grids transition from isolated analog substations to interconnected smart grids, their exposure to cyber threats increases exponentially. Supervisory Control and Data Acquisition (SCADA) systems and Operational Technology (OT) networks require robust, multi-layered cybersecurity controls to prevent unauthorized access, malware injection, and malicious trip commands.

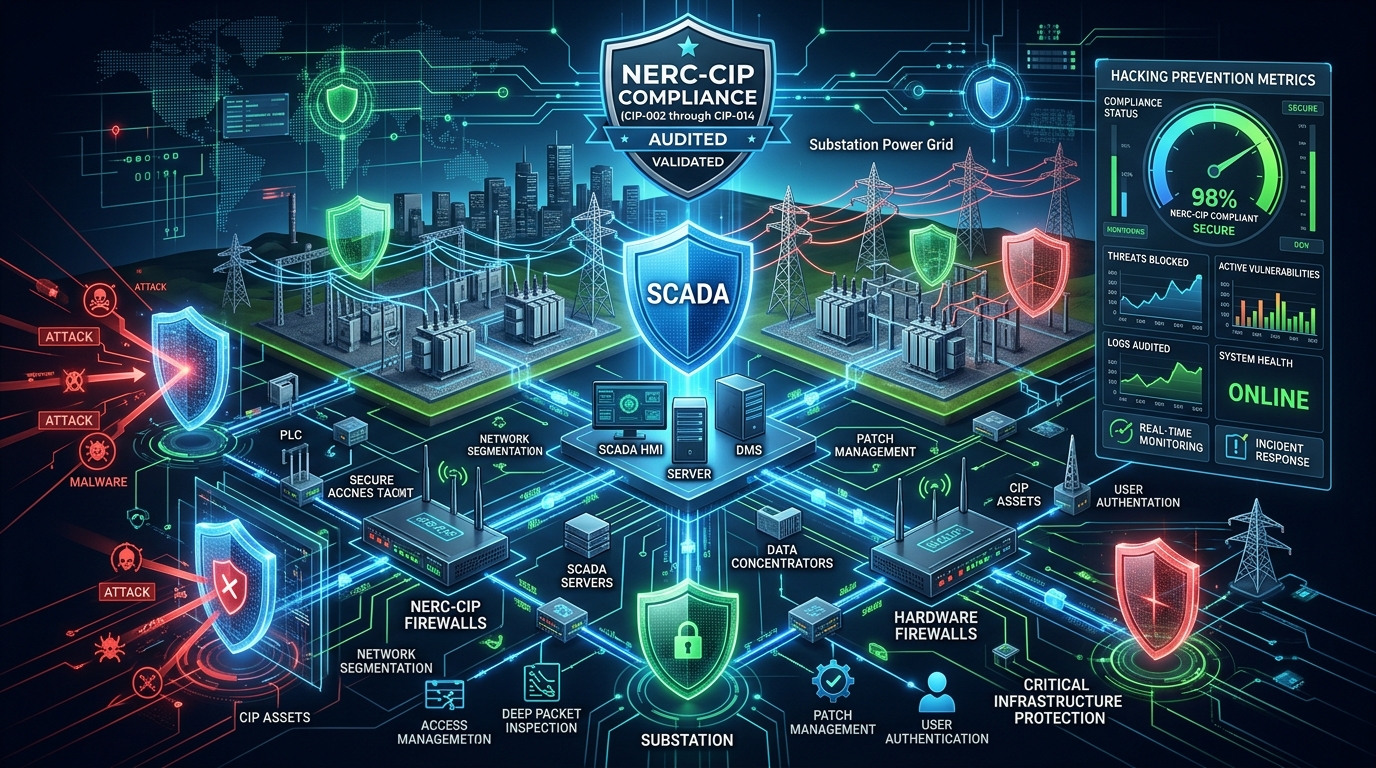

Figure 1: Multi-layered Electronic Security Perimeter (ESP) shielding physical substation control loops from external networks.
NERC-CIP Compliance & Perimeter Protection
North American Electric Reliability Corporation Critical Infrastructure Protection (NERC-CIP) standards mandate strict controls over High and Medium-impact Bulk Electric System (BES) cyber assets:
- CIP-005 (Electronic Security Perimeters): Mandates that all BES Cyber Systems must reside within an Electronic Security Perimeter (ESP). All communications entering or exiting the ESP must pass through an intermediate Demilitarized Zone (DMZ) governed by hardware firewalls.
- CIP-007 (System Security Management): Defines mandatory controls for port closing, patch management, malicious code prevention, and security event log auditing across all station HMIs and gateways.
Legacy OT networks relied on implicit trust inside the perimeter. Modern SCADA security enforces zero-trust micro-segmentation, requiring mutual TLS authentication and DNP3 Secure Authentication (SA v5) to cryptographically challenge and verify every incoming control command.
Figure 2: Defense-in-Depth SCADA Security Architecture
Corporate IT WAN
External enterprise access points protected by MFA and SIEM monitoring.
OT DMZ Zone
Jump boxes and data historians terminating external connections before ESP.
Hardware Firewall
Deep Packet Inspection (DPI) filtering unauthorized SCADA protocol function codes.
Substation ESP
Isolated bay protection IEDs communicating over encrypted IEC 62351 protocols.
Academic & Industry References
- NERC. (2021). NERC CIP Standards: Critical Infrastructure Protection Compliance Manual. North American Electric Reliability Corporation.
- NIST. (2023). NIST SP 800-82 Rev 3: Guide to Operational Technology (OT) Security. National Institute of Standards and Technology.
- IEC. (2020). IEC 62351: Power systems management and associated information exchange – Data and communications security. International Electrotechnical Commission.
